Fractal Design Node 202 ITX Case Review

Up Close: Interior

Fractal Design Node 202 Review

Up Close:  Interior

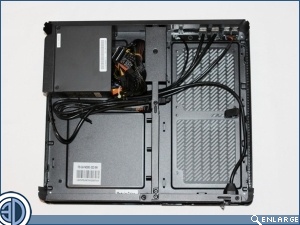

Removing four screws enables the top and sides of the case to be removed as a single piece and grants us access to the internals.  As you can see this £119 version of the case comes with a 450W SFX PSU.  If you've already got a PSU that will fit or think you can do the bundle cheaper you can actually get the case without the PSU which will set you back a much more reasonable £69.  As the layout of the case is pretty unusual let's help us orientate you by telling you that the motherboard sits in the flat area in the bottom left, with the large mesh area on the right of the case being given over to the GPU.

Fractal Design Node 202 Review     Fractal Design Node 202 Review

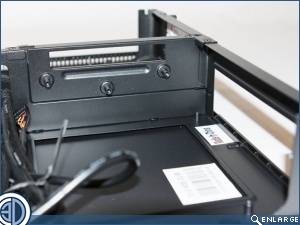

Looking down into the motherboard area now we can see why this is M-ITX only.  Things are going to be pretty tight in there by the looks of it, and yes, there does appear to be a wall of steel with a small window in it separating the Motherboard from the GPU.

Fractal Design Node 202 Review     Fractal Design Node 202 Review

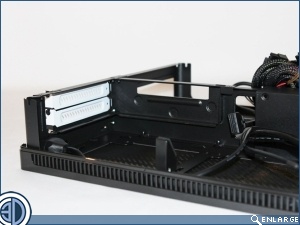

Looking  at the case from the other side of the wall we can see that it should be able to take decent size GPUs, and although there's no active cooling that large mesh area should afford plenty of fresh air.  Now, if you're wondering about storage then you need to look over to the right of the dividing wall where a small frame offers support for two 2.5" drives.  The absence of 3.5" drive storage in a case of this type isn't exactly a disaster as SSDs continue to fall in price and the prevalence of online storage increases.

Fractal Design Node 202 Review     Fractal Design Node 202 Review

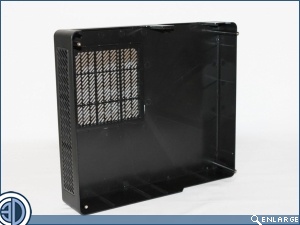

The base of the case also comes off, but this time the job is considerably harder and a bit of a nail breaker.  Removing it does enable you to get at the mesh filters though, which means if you need to clean them you're going to need to take the case pretty much apart.  On the plus side Fractal have added several dense rubber foam pads to this area to limit noise and vibration.

Fractal Design Node 202 Review     Fractal Design Node 202 Review

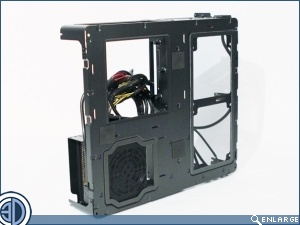

With both the top and bottom of the case removed we're left with the bare frame of the chassis.  being able to get a case down to the bare chassis prior to commencing a build is always advantageous as it enables you to really get an idea of how you're going to put things together, and in particular how you're going to organise your wiring.

Fractal Design Node 202 Review     Fractal Design Node 202 Review

«Prev 1 2 3 4 5 6 Next»

Most Recent Comments

29-02-2016, 09:03:33

Chrazey
Nice review, were actually considering this case after watching J2C's build log of it, but disliked that you have the take it apart to get to the filters.
Hence why I went with the Silverstone RVZ01.Quote

29-02-2016, 10:04:00

RickPlaysWarr
Hi

I really like this case. My twins are getting to the point where they need there own pc's They don't need to overclock and a 54 to 65 watt processor and decent graphics card will do. I might end up building two new pc's shortly. And the small form factor and the fact that it resembles an XBox on the outside will add to the "Cool" factor for them.

Once again Fractal has put out a very clean and thought out case.

--Rick--Quote

29-02-2016, 10:41:12

You_What?
Really like the look of this, have been contempting ridding my Fractal 605 for a smaller unit.Quote

29-07-2016, 16:26:25

mypickaxe
Quote:
Originally Posted by Chrazey View Post
Nice review, were actually considering this case after watching J2C's build log of it, but disliked that you have the take it apart to get to the filters.
Hence why I went with the Silverstone RVZ01.
It takes 15 seconds.Quote

29-07-2016, 18:36:49

Chrazey
Quote:
Originally Posted by mypickaxe View Post
It takes 15 seconds.
Still an weird design and an uneccessary steps for it.Quote
