A look at MSI’s RX 5600 XT MECH & GAMING X – CES 2020

Hands on with MSI's RX 5600 XT MECH & GAMING X - CES 2020

A glance at MSI’s RX 5600 XT MECH & GAMING X – CES 2020

Last night, AMD officially revealed its Radeon RX 5600 XT, a mid-range graphics card that’s designed to outperform Nvidia’s GTX 1660 Ti, delivering gamers outstanding 1080p gaming performance.

At CES 2020, MSI has become AMD AIB partner to talk to us about their RX 5600 XT series, which will range from reference clocked models to higher-end factory overclocked variants. All of these graphics cards feature 6GB of GDDR6 memory and the same 2304 stream processor count as AMD’s Radeon RX 5700.

Like other custom Radeon RX 5600 XT graphics cards, MSI’s MECH and GAMING series models will release on January 21st worldwide.

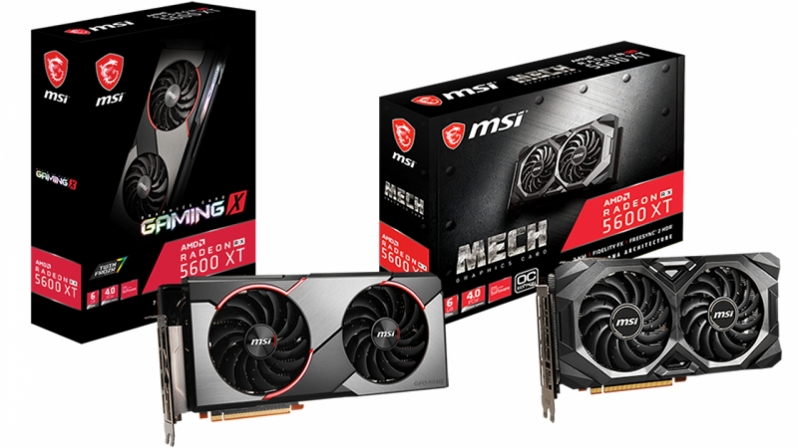

Both of MSI’s RX 5600 XT cards ship with dual-fan cooling solutions, with the MECH series acting as the company’s budget-friendly offering while their Gaming series models ships with a larger, heavier cooler design that features RGB lighting support.

Hands on with MSI's RX 5600 XT MECH & GAMING X - CES 2020

MSI’s MECH series cooler is an upgraded version of MSI’s VENTUS series design, giving MSI’s, so far, AMD-only MECH cooler an advantage over its older Nvidia-only Ventus counterpart. Like MSI’s MECH cooler design, MSI’s new Gaming X cooler design also remains as an AMD-only heatsink.

As expected, even MSI’s high-end Radeon RX 5600 XT Gaming X model features lower clock speeds than AMD’s reference Radeon RX 5700. This limitation is likely due restrictions that AMD has placed on its AIB (Add-in-Board) partners to prevent the RX 5600 XT from outperforming AMD’s more expensive Radeon RX 5700. This leaves us to wonder if the Radeon RX 5600 XT has much untapped overclocking potential. Could AMD’s Radeon RX 5600 XT be an overclocking monster?



  AMD Radeon RX 5500 XT AMD Radeon RX 5600 XT  MSI RX 5600 XT MECH MSI RX 5600 XT MECH OC MSI RX 5600 GAMING MSI RX 5600 XT Gaming X AMD Radeon RX 5700 AMD Radeon RX 5700 XT
Process Tech/ Architecture 7nm Navi 7nm Navi 7nm Navi 7nm Navi 7nm Navi 7nm Navi 7nm Navi 7nm Navi
Stream
Processors
1408 2304 2304 2304 2304 2304 2304 2560
Base Clock  1465MHz 1605MHz
Gaming Clock 1717MHz 1375MHz 1375MHz 1420MHz 1420MHz 1460MHz 1625MHz 1755MHz
Boost Clock 1845MHz 1560MHz 1560MHz 1600MHz 1600MHz 1620MHz 1725MHz 1905MHz
Memory 4/8GB GDDR6 6GB GDDR6 6GB GDDR6 6GB GDDR6 6GB GDDR6 6GB GDDR6 8GB GDDR6 8GB GDDR6
Memory Bus 128-bit 192-bit 129-bit 192-bit 192-bit 192-bit 256-bit 256-bit
Memory Clock 14Gbps 12Gbps 12Gbps 12Gbps 12Gbps 12Gbps 14Gbps 14Gbps
Memory
Bandwidth
224GB/s 288GB/s 288GB/s 288GB/s 288GB/s 288GB/s 448GB/s 448GB/s
MSRP (US) $169 $279 $349 $399
