ASRock unveils its AMD RX 9060 XT series GPUs at Computex
ASRock unveiled its Radeon RX 9060 XT series graphics cards, and all of them are overclocked
We visited the ASRock booth this morning. Hot on the heels of AMD’s Radeon RX 9060 XT reveal, ASRock staff unloaded and displayed the company’s first mid-range RDNA 4 graphics cards. Both of these GPUs featured healthy factory overclocks and boasted custom cooler designs.
On the higher end of ASRock’s Radeon RX 9060 XT lineup is their RX 9060 XT Steel Legend OC. This GPU will have 8GB and 16GB variants and launch with RGB lighting and three display outputs, including two DisplayPort 2.1 outputs and one HDMI 2.1b connector.
Out of the box, this RX 9060 XT features a boost clock that is almost 200 MHz higher than AMD’s reference model. Even better, its “Game Clock” is 250MHz higher. In percentage terms, ASRock’s Steel Legend model has a game clock almost 10% higher than AMD’s reference specifications.
(ASRock RX 9060 XT Steel Legend)
Meet the ASRock Radeon RX 9060 XT Challenger OC
Next, we have the Radeon RX 9060 XT Challenger OC, which also features a significant factory overclock. Its “Game Clock” is 6.7% higher than AMD’s reference specifications. That’s a 170MHz increase.
The Challenger OC features less RGB lighting and only two cooling fans. However, it features the same number of display outputs and the same 16x PCIe 5.0 interface. Like the Steel Legend, the RX 9060 XT Challenger will be available as a 8GB or a 16GB GPU.

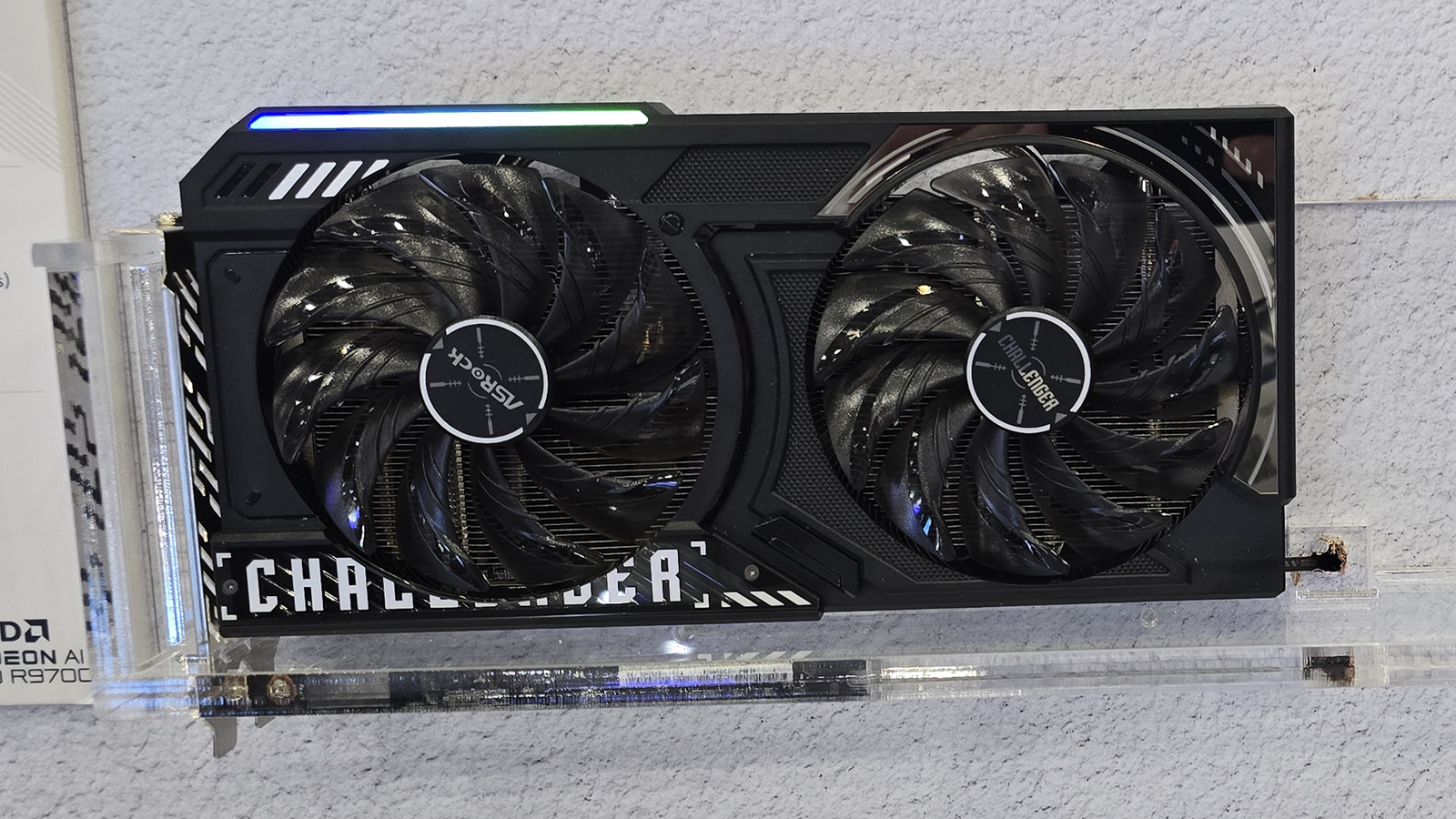

(ASRock RX 9060 XT Challenger)
Significant overclocks
As mentioned before, the RX 9060 XT’s Steel Legend and Challenger models have significant clock speed boosts compared to AMD’s reference specifications. That’s great news for gamers, as this means that they will have more performance to play with. Both models are powered using 8-pin PCIe power connectors, making these GPUs compatible with all modern PC power supplies.
| AMD Radeon RX 9070 XT |
AMD Radeon RX 9070 |
ASRock RX 9060 XT Steel Legend OC |
ASRock RX 9060 XT Challenger OC |
AMD Radeon RX 9060 XT |
AMD Radeon RX 7600 XT |
|
| Architecture | RDNA 4 | RDNA 4 | RDNA 4 | RDNA 4 | RDNA 4 | RDNA 3 |
| Node | 4nm | 4nm | 4nm | 4nm | 4nm | 6nm |
| Compute Units | 64 | 56 | 32 | 32 | 32 | 32 |
| Stream Processors | 4096 | 3584 | 2048 | 2048 | 2048 | 2048 |
| “Game” Clock Speed | 2400 MHz | 2070 MHz | 2780 MHz | 2700 MHz | 2530 MHz | 2470 MHz |
| Boost Clock Speed | 2970 MHz | 2520 MHz | 3320 MHz | 3290 MHz | 3130 MHz | 2755 MHz |
| GDDR6 Memory | 16GB | 16GB | 8GB or 16GB | 8GB or 16GB | 8GB or 16GB | 16GB |
| GDDR6 Speed | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 18 Gbps |
| Memory Bis Size | 256-bit | 256-bit | 128-biit | 128-bit | 128-bit | 128-bit |
| PCIe | 5.0 x16 | 5.0 x16 | 5.0 x16 | 5.0 x16 | 5.0 x16 | 4.0 x8 |
More ASRock Radeon RX 9000 series GPUs
At their Computex booth, ASRock also displayed several Radeon RX 9070 XT series graphics cards, including an unreleased “Taichi White” concept GPU. I like the look of this model and would love to see it released.
Complementing its range of RDNA 4 graphics cards, ASRock has a range of FreeSync Premium Pro-compatible OLED gaming monitors on display at its booth. You can hear more about these monitors here.
You can join the discussion on ASRock’s Radeon RX 9060 XT series graphics cards on the OC3D Forums.
