Cybenetics’ “anti-melt” cable could be the perfect solution for 12V-2×6 power

It’s not the solution we want, but it’s the solution we need – Cybenetics aims to fix the 12V-2×6 power problem

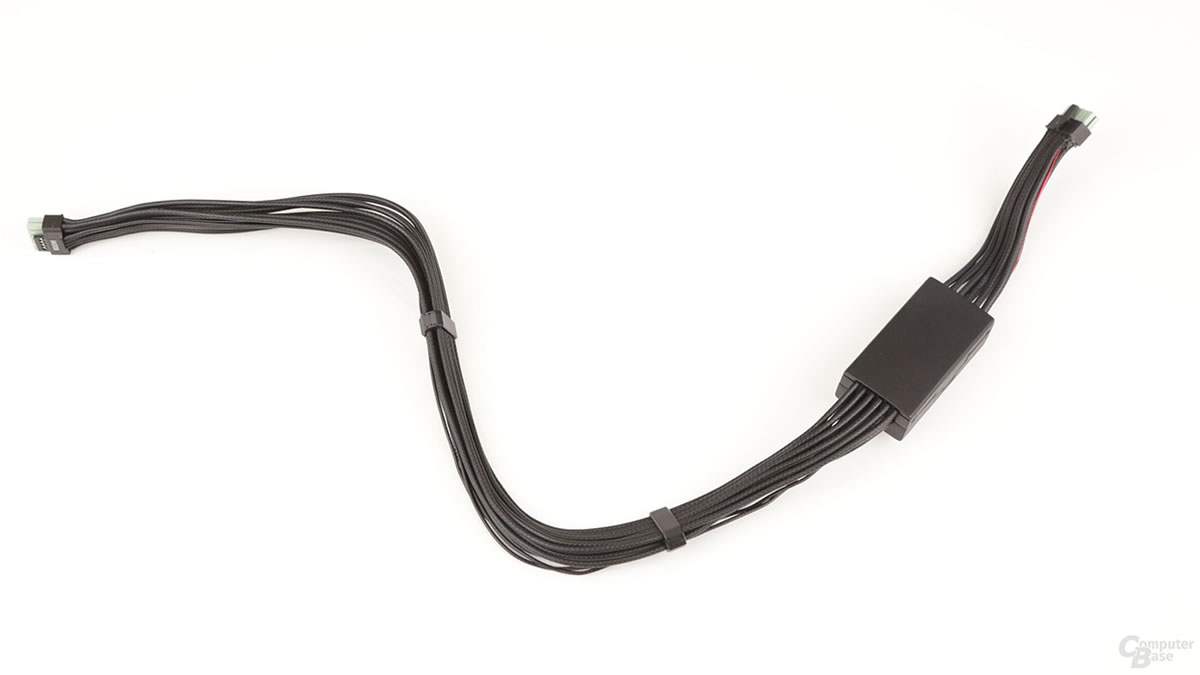

Cybenetics has created a prototype “anti-melt” 12V-2×6 power cable that’s compatible with all 12V-2×6 and 12VHPWR graphics cards. This cable replaces native 12V-2×6 power cables and features an in-line box that measures current and cable temperature. Using this data, this cable has safety features that can save gamers from a cable-melting scenario.

For extended violation of current or thermal limits, a buzzer will sound to alert users. Then, after a configured delay, your display will go dark when your GPU stops receiving power through the connector. This prevents damage to the cable and graphics card by halting the GPU’s use before heat can built up to dangerous levels.

(Images from Computerbase.de)

Highly compatible, and it works with and without software

This cable can be used with any PC that has a 12V-2×6 graphics card and a power supply that features a native 12V-2×6 power connector. This means that this cable is incompatible with PSUs that use alternative cables to fuel 12V-2×6 power cables.

Using the optionalUSB Type-C cable, users can configure their power cable’s protective settings and set its limits. Users can set their over-current and over-temperature thresholds. They can also set the length of their buzzer warning and their protection “kick-in” time.

(Images from Computerbase.de)

Adjustable protection thresholds

For Nvidia’s RTX 5090, an over-current trigger point of 10 amps is recommended, and an overtemperature trigger point of 80 degrees Celsius is considered sensible. Users can log their amps and temperature data and log them as Excel files.

(Images from Computerbase.de)

Cybenetics has noted that it wants to release this cable at prices close to cost, though it has found no production partners yet. It is currently unknown if this product will make it to market.

It’s sad that we need a “solution” like this

The 12V-2×6 and 12VHPWR standards are flawed. Cable melting incidents remain frequent, to the point that many consumers have lost confidence in the standard. The standard either needs to be redesigned with higher safety margins, or GPUs need to be designed with per-pin controls that prevent over-current issues entirely.

Simply put, products like this “anti-melt” PSU cable wouldn’t be necessary if the 12V-2×6 standard were issue-free. Cable melting was not common when we used 6-pin or 8-pin PCIe power cables. Clearly there is a problem with the 12V-2×6 standard. It’s undeniable at this point.

You can join the discussion on Cybenetics’ “anti-melt” 12V-2×6 cable on the OC3D Forums.
