Images of AMD’s RX 570 and RX 580 have appeared online alongside the GPU’s specifications, confirming that these GPUs will have higher clock speeds than their RX 400 series counterparts and offer modified power designs.

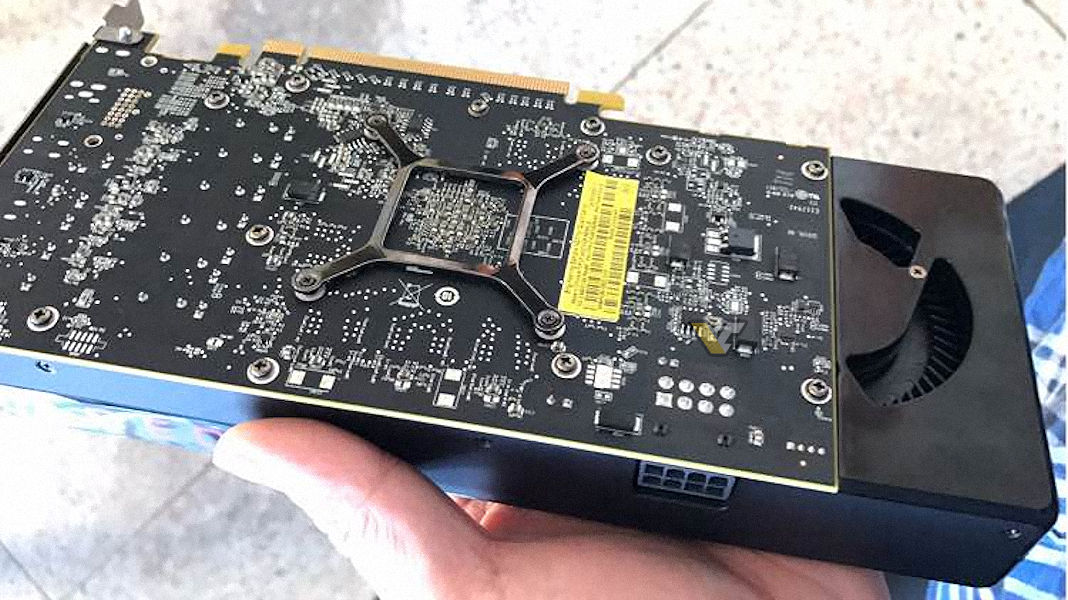

Below we can see that these AMD reference designs will lack any DVI connections, though we can clearly see the pin-out on the PCB, which means that aftermarket models using AMD’s reference PCB could include a DVI connection. We can also see that this GPU will also include the same cooler design as the RX 480-series reference designs.



Images of AMD's RX 570 and RX 580 have appeared online  Images of AMD's RX 570 and RX 580 have appeared online

(RX 570 Engineering Sample – From VideoCardz)

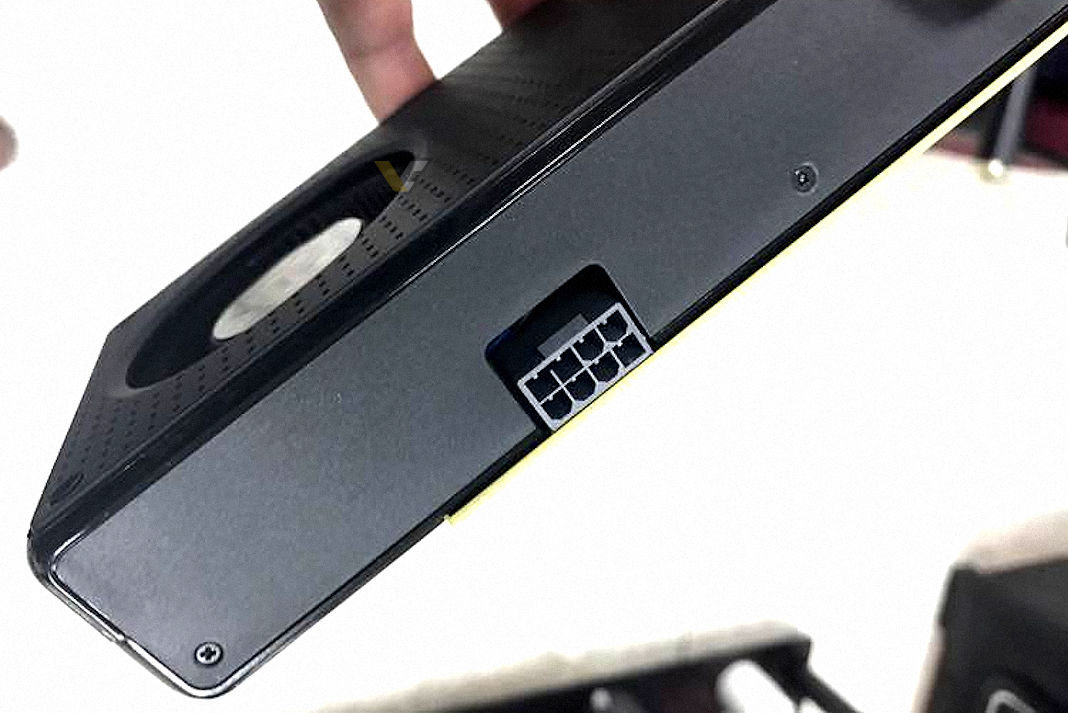

Below we can see that the new RX 480 will come with an 8-pin PCIe power connection, allowing the GPU to consume more power for higher overclocks and reference clock speeds of over 1300MHz.



  Radeon RX 580 Radeon RX 480 Radeon RX 570 Radeon RX 470
GPU Polaris 10 Polaris 10 Polaris 10 Polaris 10
Cores


2304


2304


2048


2048
TMUs


144


144


128


128
ROPs


32


32


32


32
FP32 Compute


6.17 TFLOPS


5.83 TFLOPS


5.10 TFLOPS


4.94 TFLOPS
Boost Clock


~1340 MHz


1266 MHz


~1244 MHz


1206 MHz
Memory Clock


8000 MHz


8000 MHz


7000 MHz


6600 MHz
Memory


up to 8 GB


up to 8 GB


up to 8 GB


up to 8 GB
Memory Bus


256-bit


256-bit


256-bit


256-bit
Bandwidth


256 GB/s


256 GB/s


224 GB/s


211 GB/s
Memory Type GDDR5 GDDR5 GDDR5 GDDR5
Power Connector 1x 8-pin 1x 6-pin 1x 6-pin 1x 6-pin

Images of AMD's RX 570 and RX 580 have appeared online

(RX 580 Engineering Sample – From VideoCardz)
Images of AMD's RX 570 and RX 580 have appeared online  Images of AMD's RX 570 and RX 580 have appeared online


It looks like AMD will not be increasing the memory bandwidth of the RX 580 to better compete with the GTX 1060 9Gbps, though it must be remembered that the GTX 1060 does use a smaller memory bus size and will offer a lower total memory bandwidth than the RX 580 (216 Gbps vs 256Gbps).

Right now it is expected that the RX 500 series will be released on April 18th.



You can join the discussion on AMD’s RX 570 and RX 580 on the OC3D Forums.
