AMD Ryzen 5 & 7 CPU Cooler Round Up

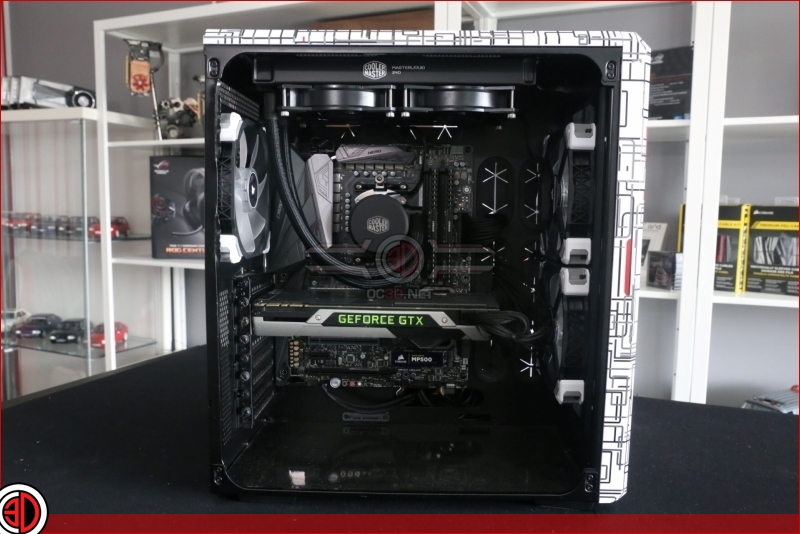

Cooler Master Master Liquid 240

The Cooler Master MasterLiquid 240 is the first CPU cooler that we have tested to support AMD’s AM4 platform out of the box, which means that users do not need to spend any time or money to get an AM4 mounting kit upgrade for Ryzen.

This cooler is designed to be a more affordable version of the companies Master Liquid Pro 240 liquid cooler, coming with a price tag of £79.99, making this the cheapest AIO liquid cooler that we are testing today.



CPU Socket

– Intel: LGA 2011-3/2011/1366/1156/1155/1151/1150/775,
– AMD: FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2/AM4

– Waterblock Dimensions (LxWxH): 85.6(L) x 70(W) x 49(H) mm

Radiator Material
– Aluminium (Radiator)
– Copper (Baseplate)
– FEP (Tubing)

Fan
– Fan Dimensions (LxWxH): 120(L) x 120(W) x 25(H) mm
– Fan Speed: 650-2,000 RPM ± 10%
– Fan Airflow: 66.7 CFM ± 10%
– Fan Air Pressure: 2.34 mmH2O ± 10%
– Fan Life Expectancy: 160,000 hrs
– Fan Noise Level (dBA): 6-30 dBA
– Fan Bearing Type: POM Bearing
– Fan Connector: 4-Pin (PWM)
– Fan Rated Voltage: 12 VDC
– Fan Rated Current: 0.16 A
– Fan Power Consumption: 1.92 W

Pump
– Pump Life Expectancy: 70,000 hrs
– Pump Noise Level:
– Pump Rated Voltage: 12 V
– Pump Rated Current: 0.5 A
– Pump Power Consumption: 6 W
– Warranty: 2 years



Current Price – £79.99







AM4 Compatability

This cooler comes with full AM4 support out of the box, allowing this cooler to be used with Ryzen without the need to order an aftermarket AM4 mounting kit.
