Raijintek Asterion Plus Case Review
Cooling

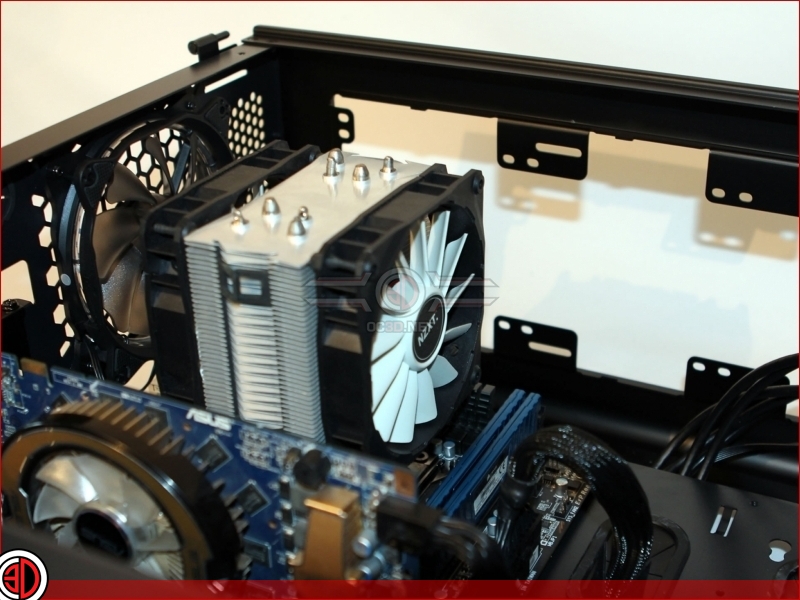

The Asterion has a good 180mm of head space, so should you choose to go for a traditional tower blower pretty much anything on the market will fit. Â As usual we’ve used our Havik 120 so as to give you a basis for comparison with other cases.
Â
Â

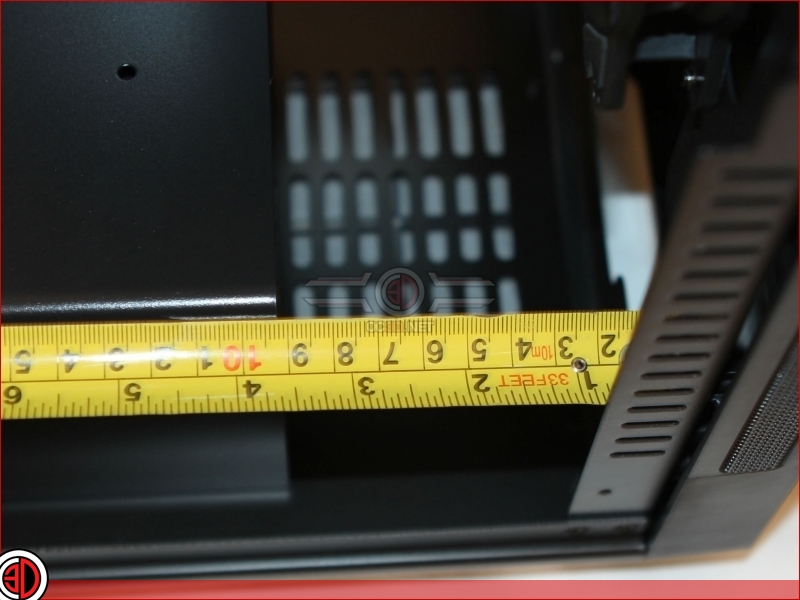

What you really want to know though is how well the Asterion lends itself to water cooling. Â Well let’s just say very well, very well indeed. Â We know you can get a 360 or a 280 in the front, but just how much space is there before you hit the edge of the false floor. Â 90mm, that’s how much, which, let’s be honest is plenty for a 40mm thick 360 rad in push pull, or a thicker 65mm thick rad with just one set of fans.
Â
Â

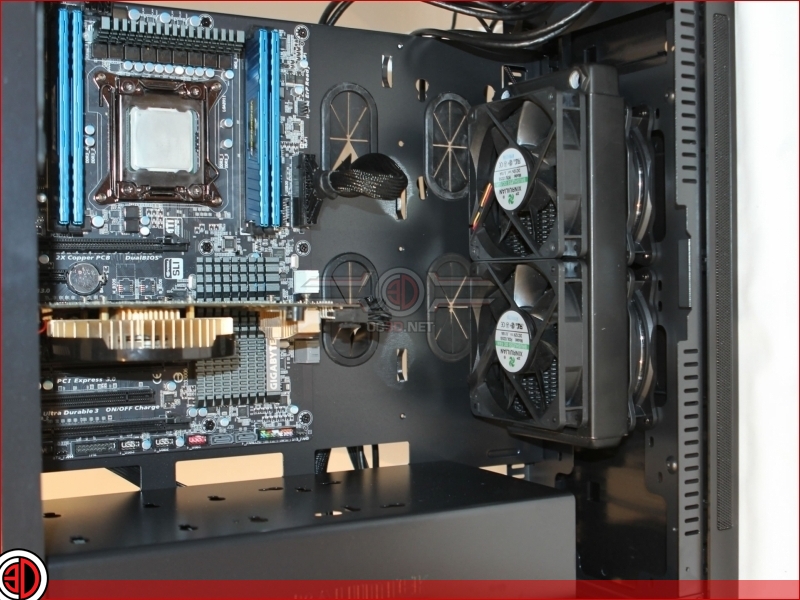

If you fit a 240 or 280 rad and mount it higher up as we have here, there really is very little limit on how thick you can go, even taking into account a long GPU we reckon there’s still room for a Monsta thick rad in push pull. Â To put a numerical value on things, you’ve actually got a staggering 230mm of space between the inner edge of the case and the edge of the motherboard.
Â
Â

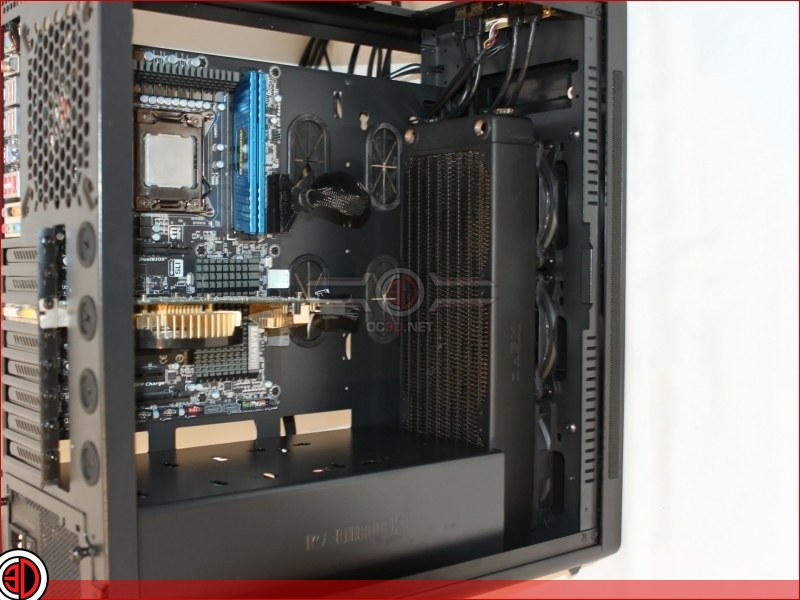

As we said, it’s also possible to fit a 360 in there. Â We know a lot of you don’t like the look of rads dropping below the false floor, but hey, at least you have the option. Â Probably the most important thing to note on this image though is the amount of space available at the top. Â Why is this important? Â Well it means that you can fit a big rad in the front as well as a big rad in the roof without the two impinging on each other. Â Having got the tape measure out again we found that there’s a good 450mm of space in the front, so if you’re handy with a Dremel we think it’s entirely possible to mod the case to accept a 420mm rad. Â Allowing for end tanks, It’ll be tight, and it will limit your scope for a second large rad in the roof, but it should be possible.
Â
Â

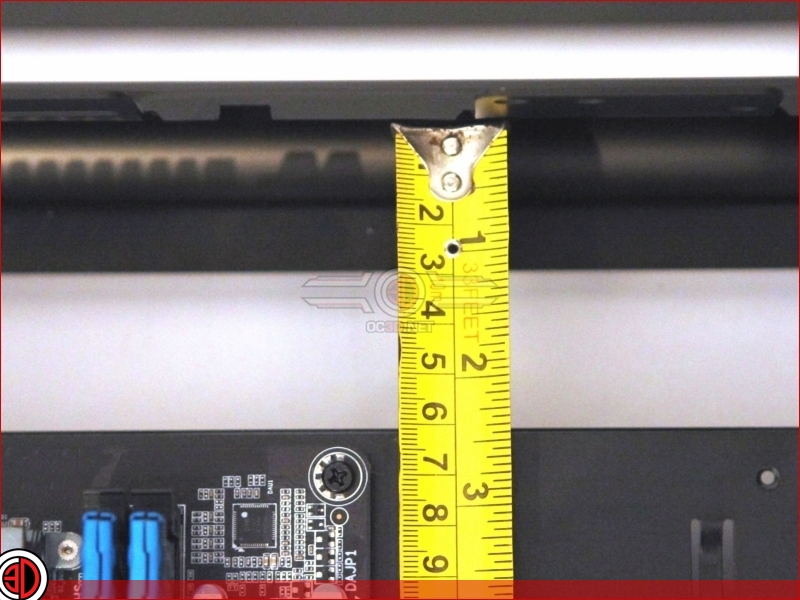

There’s obviously not as much space up in the roof, but there’s still a good 60mm to play with, which we think is more than enough.
Â
Â

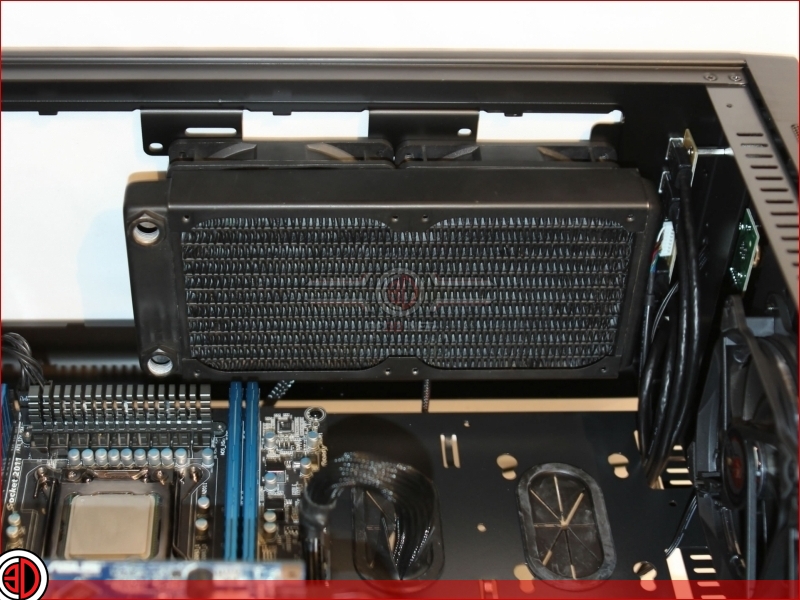

As with the front of the case you can fit a 280mm or 360mm rad up here, and although push pull isn’t an option any rad up to 35mm combined with a standard set of fans should be fine.
Â
Â
 As there’s no off-set, that 60mm figure is a firm one so there’s no wiggle room.  As you can see though, a 360mm rad fits up there just fine.
