Up Close in Detail

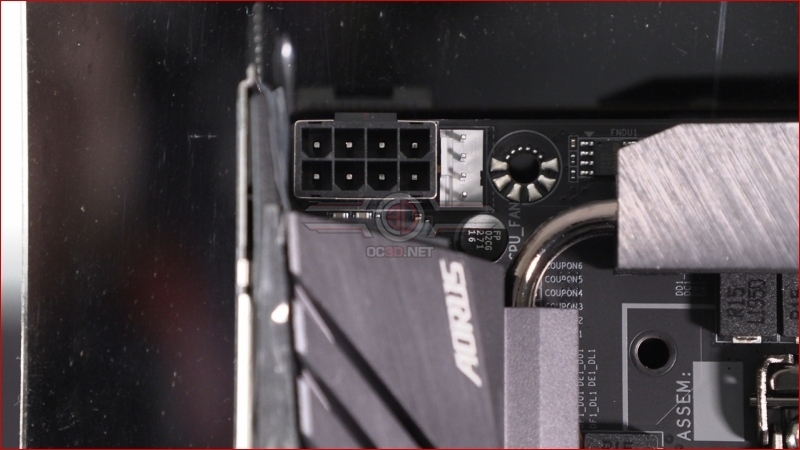

Naturally things are a little tighter on an ITX motherboard, but with so much on the CPU and Chipset these days there is a lot more room for the designers to place things in useful spots, and the Aorus Ultra ITX is a perfect example of this. Starting off with an 8 pin CPU power input right next to the CPU fan header.

Gigabyte Z490I Aorus Ultra CPU power

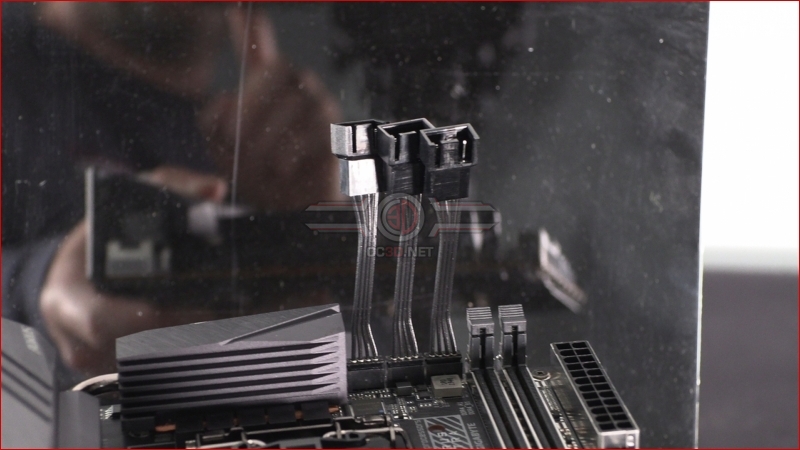

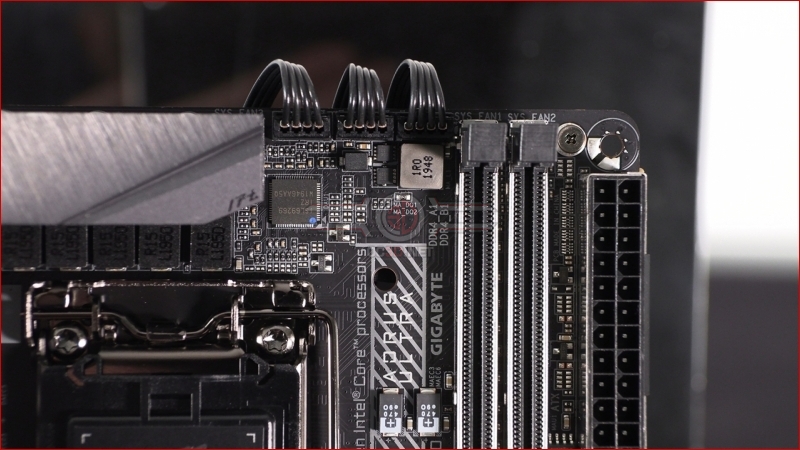

Moving along and we have three fan headers, all with extra cables as you can see in the second of this pair of photos. You can also see how close to the edge the ATX 24pin is. Not a millimetre spared.

Gigabyte Z490I Aorus Ultra DIMM
Gigabyte Z490I Aorus Ultra Fan headers

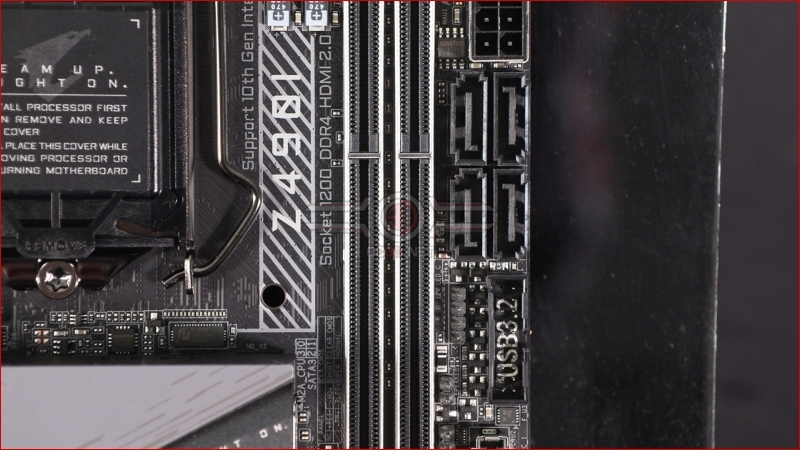

We usually mark motherboards down if they have vertical SATA ports, but ITX boards get a pass for simple space reasons. Squeezing four on, in these ‘all the USB headers and some RGB’ days is a good effort. On that subject, USB 3.2. But you’ve already read that haven’t you.

Gigabyte Z490I Aorus Ultra SATA

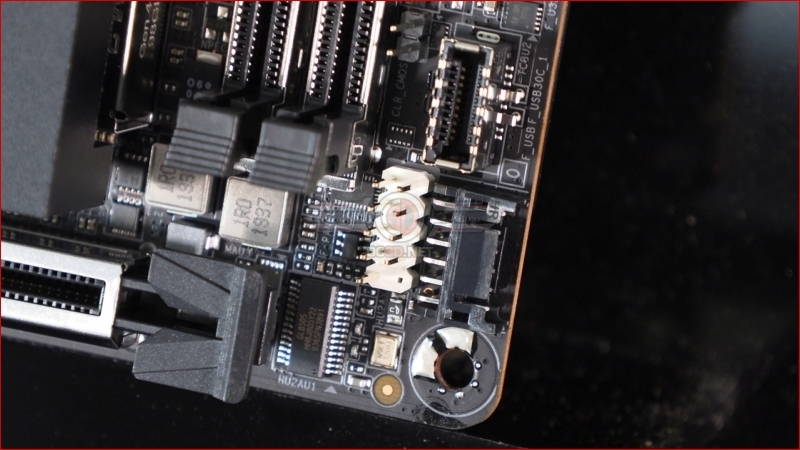

Whoo for the modern, and infinitely more user-friendly new style USB header. No bent pins. No wiggling about. Click, go. The R&D people don’t get nearly enough credit for making USB so damn simple.

Gigabyte Z490I Aorus Ultra RGB

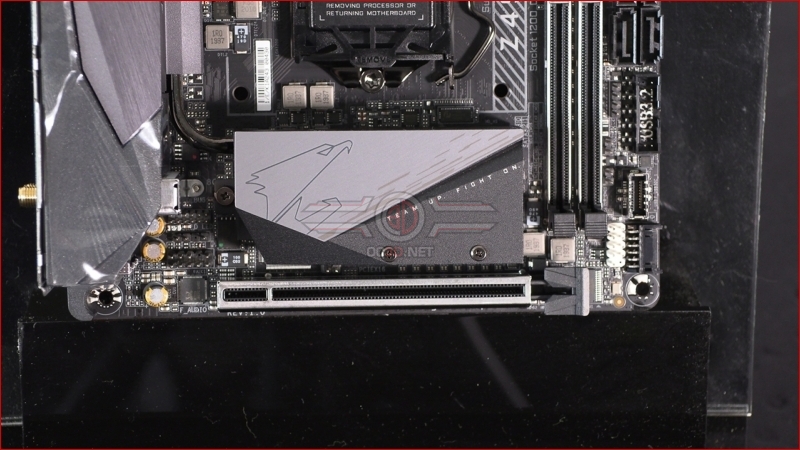

Wrapping up the tour, even if the Aorus Ultra ITX is almost entirely visible in every photograph, with the braced PCI Express slot at x16, sitting next to the Realtek ALC1220-VB audio with DTS:X Ultra support.

Gigabyte Z490I Aorus Ultra Heatsink

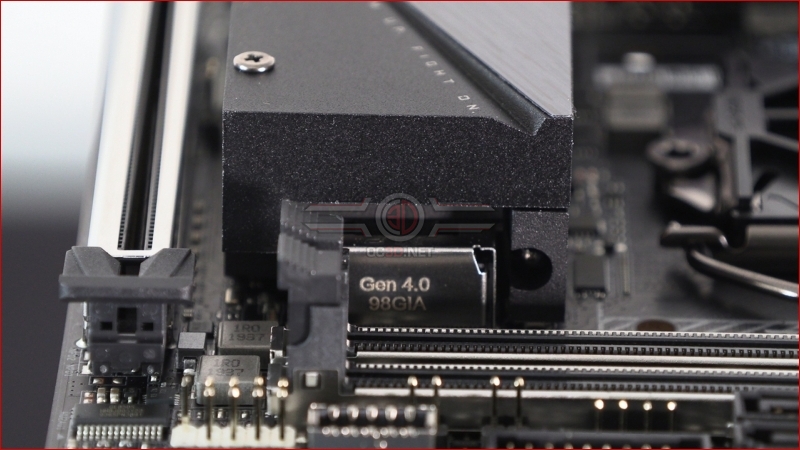

The chipset heatsink which also shows off the Aorus logo in the photo above has this sitting below it. No comment.

Gigabyte Z490I Aorus Ultra Gen 4

Although we’ve mentioned it briefly before, beneath that monster of a heatsink is the Direct 8 Phase Digital VRM with 90A Smart Power Stage and Tantalum Polymer Caps. Impressive for such a little motherboard. Little jockey, big whip indeed.

Gigabyte Z490I Aorus Ultra Power stage

Whilst you await our Z490 launch reviews due in a couple of weeks or so, discuss the Gigabyte Z490I Aorus Ultra on the OC3D Forums.
